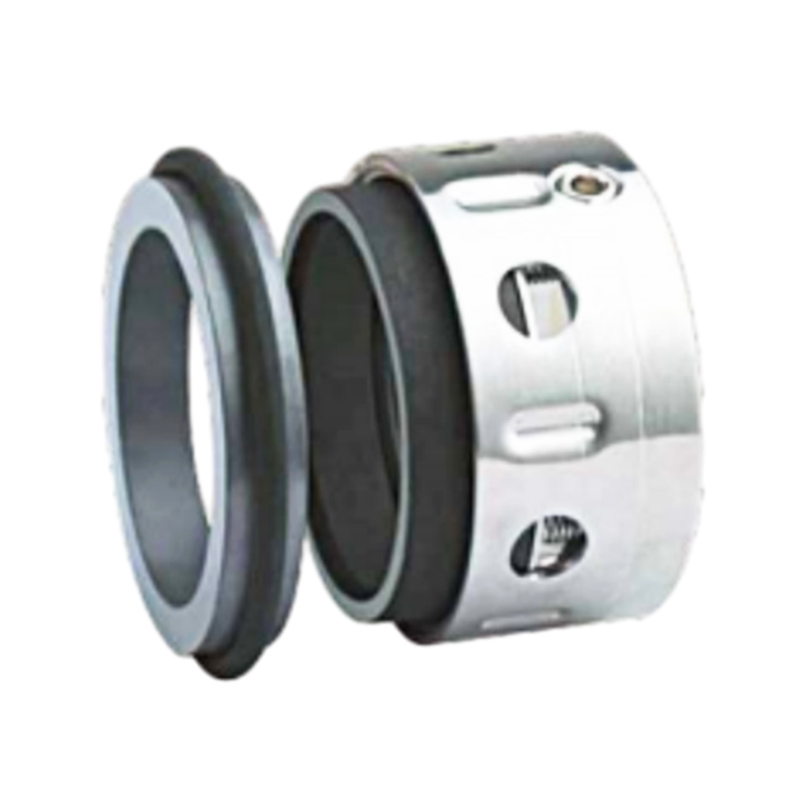

Operating Limits
Temperature: -40°C+260°C
Speed: ≤25m/s
Pressure: ≤24bar
Standard Size: 0.5"-4"
● Seal ring: Car, Sic, Ssic, TC
● Secondary seal: NBR, Viton, EPDM, Kalrez.
● Spring and metal parts: 304, 316, HAST.C

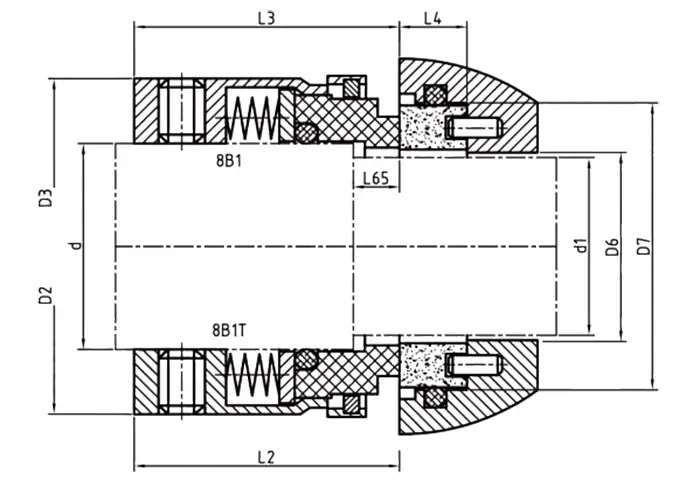

| Size | d | d1 | D2 | D3 | D6 | D7 | L3 | L4 | L65 |
| 1.000 | 25.4 | 22.2 | 36.50 | 40.3 | 24.00 | 38.30 | 33 | 10.30 | 8 |
| 1.125 | 28.5 | 25.4 | 39.67 | 43.4 | 27.50 | 41.48 | 35 | 11.15 | 7.9 |
| 1.250 | 31.7 | 28.5 | 42.85 | 48.3 | 30.50 | 44.65 | 35 | 11.15 | 7.9 |
| 1.375 | 34.9 | 28.5 | 49.20 | 51.3 | 33.50 | 47.83 | 37 | 11.15 | 8.7 |
| 1.500 | 38.1 | 31.7 | 49.20 | 54.5 | 37.00 | 51.00 | 37 | 11.15 | 8.7 |
| 1.625 | 41.2 | 34.9 | 57.15 | 60.8 | 40.00 | 54.18 | 45 | 11.15 | 8.7 |
| 1.750 | 44.4 | 38.1 | 28.72 | 64.0 | 43.50 | 60.53 | 45 | 11.15 | 9.5 |
| 1.875 | 47.6 | 41.2 | 63.50 | 67.2 | 46.50 | 63.70 | 45 | 12.75 | 9.5 |
| 2.000 | 50.8 | 44.4 | 66.68 | 70.4 | 49.50 | 66.88 | 45 | 12.75 | 9.5 |
| 2.125 | 53.9 | 47.6 | 71.42 | 76.7 | 53.00 | 70.05 | 52 | 12.75 | 11.1 |
| 2.250 | 57.1 | 50.8 | 72.21 | 79.9 | 56.00 | 76.40 | 52 | 12.75 | 11.1 |
| 2.375 | 60.3 | 53.9 | 76.20 | 83.1 | 59.00 | 79.58 | 52 | 14.33 | 11.1 |
| 2.500 | 63.5 | 57.1 | 79.38 | 86.2 | 62.50 | 82.75 | 52 | 14.33 | 11.1 |
| 2.625 | 66.6 | 60.3 | 82.55 | 89.4 | 65.50 | 85.93 | 52 | 14.33 | 11.1 |
| 2.750 | 69.8 | 63.5 | 85.73 | 92.6 | 68.50 | 85.93 | 52 | 14.33 | 11.1 |
| 2.875 | 73.0 | 66.6 | 88.90 | 95.8 | 72.00 | 89.10 | 52 | 15.93 | 11.1 |
| 3.000 | 76.2 | 69.8 | 92.08 | 97.3 | 75.00 | 95.45 | 52 | 15.93 | 11.1 |
| 3.125 | 79.3 | 73.0 | 95.25 | 100.5 | 78.50 | 98.63 | 52 | 15.93 | 11.1 |
| 3.250 | 82.5 | 76.2 | 98.43 | 105.3 | 81.50 | 101.80 | 52 | 15.93 | 14.3 |
| 3.375 | 85.7 | 79.3 | 101.60 | 108.5 | 84.50 | 104.98 | 52 | 19.84 | 14.3 |
| 3.500 | 88.9 | 82.5 | 104.78 | 111.6 | 88.00 | 108.15 | 52 | 19.84 | 14.3 |
| 3.625 | 92.0 | 85.7 | 107.95 | 114.8 | 91.00 | 111.33 | 52 | 19.84 | 14.3 |
| 3.750 | 95.2 | 88.9 | 111.13 | 118.0 | 94.00 | 114.50 | 52 | 19.84 | 14.3 |
| 3.875 | 98.4 | 92.0 | 114.30 | 121.2 | 97.50 | 117.68 | 52 | 19.84 | 14.3 |
| 4.000 | 101.6 | 95.2 | 117.48 | 124.3 | 100.50 | 120.85 | 52 | 19.84 | 14.3 |
