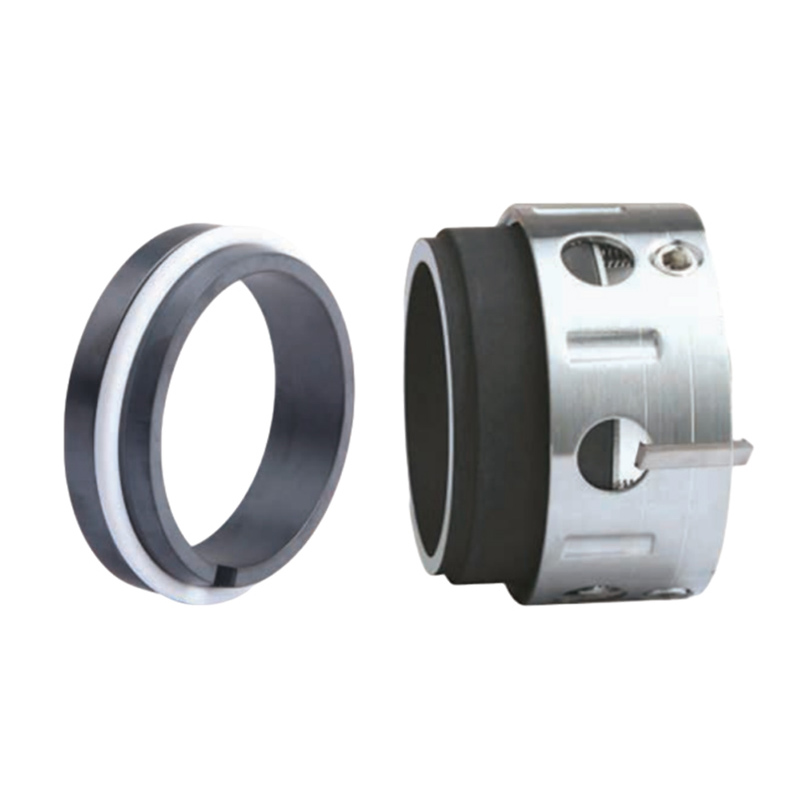

Operating Limits
Temperature: -20°C+250°C
Speed: ≤15m/s
Pressure: ≤25bar
Standard Size: 14-100mm
● Seal ring: Car, Sic, Ssic, TC
● Secondary seal: NBR, Viton, EPDM, Kalrez, PTFE.
● Spring and metal parts: 304, 316, HAST.C

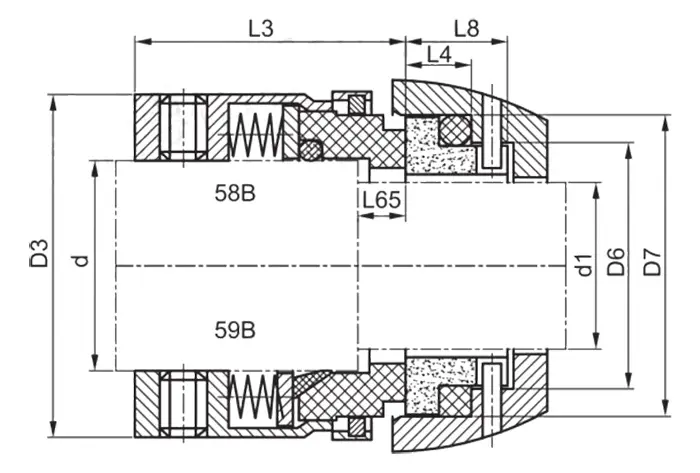

| Size | d | d1 | D3 | D6 | D7 | L3 | L4 | L8 | L65 |
| 14 | 14 | 18 | 32 | 21 | 25 | 30.5 | 12.0 | 18.5 | 6.0 |
| 16 | 16 | 20 | 34 | 23 | 27 | 30.5 | 12.0 | 18.5 | 6.0 |
| 18 | 18 | 22 | 36 | 23 | 33 | 31.5 | 13.5 | 20.5 | 6.5 |
| 20 | 20 | 24 | 38 | 29 | 35 | 31.5 | 13.5 | 20.5 | 6.5 |
| 22 | 22 | 26 | 40 | 31 | 37 | 31.5 | 13.5 | 20.5 | 6.5 |
| 24 | 24 | 28 | 42 | 33 | 39 | 34.2 | 13.3 | 20.3 | 6.7 |
| 25 | 25 | 30 | 44 | 34 | 40 | 34.5 | 13.0 | 20.0 | 7.0 |
| 28 | 28 | 33 | 47 | 37 | 43 | 37.5 | 12.5 | 19.5 | 7.5 |
| 30 | 30 | 35 | 49 | 39 | 45 | 38.0 | 12.0 | 19.0 | 8.0 |
| 32 | 32 | 38 | 54 | 42 | 48 | 38.0 | 12.0 | 19.0 | 8.0 |
| 33 | 33 | 38 | 54 | 42 | 48 | 38.0 | 12.0 | 19.0 | 8.0 |
| 35 | 35 | 40 | 56 | 44 | 50 | 38.0 | 12.0 | 19.0 | 8.0 |
| 38 | 38 | 43 | 59 | 49 | 56 | 39.5 | 13.0 | 20.0 | 10.0 |
| 40 | 40 | 45 | 61 | 51 | 58 | 39.5 | 13.0 | 20.0 | 10.0 |
| 43 | 43 | 48 | 64 | 54 | 61 | 39.5 | 13.0 | 20.0 | 10.0 |
| 45 | 45 | 50 | 66 | 56 | 63 | 39.5 | 13.0 | 20.0 | 10.0 |
| 48 | 48 | 53 | 69 | 59 | 66 | 39.5 | 13.0 | 20.0 | 10.0 |
| 50 | 50 | 55 | 71 | 62 | 70 | 44.0 | 13.5 | 20.5 | 11.5 |
| 53 | 53 | 58 | 78 | 65 | 73 | 44.0 | 13.5 | 20.5 | 11.5 |
| 55 | 55 | 60 | 80 | 67 | 75 | 44.0 | 13.5 | 20.5 | 11.5 |
| 58 | 58 | 63 | 83 | 70 | 78 | 49.0 | 13.5 | 20.5 | 11.5 |
| 60 | 60 | 65 | 85 | 72 | 80 | 49.0 | 13.5 | 20.5 | 11.5 |
| 63 | 63 | 68 | 88 | 75 | 83 | 49.0 | 13.5 | 20.5 | 11.5 |
| 65 | 65 | 70 | 90 | 77 | 85 | 49.0 | 13.5 | 20.5 | 11.5 |
| 70 | 70 | 75 | 95 | 83 | 92 | 55.0 | 14.5 | 21.5 | 13.5 |
| 75 | 75 | 80 | 104 | 88 | 97 | 55.0 | 14.5 | 21.5 | 13.5 |
| 80 | 80 | 85 | 109 | 95 | 105 | 55.0 | 15.0 | 22.0 | 13.0 |
| 85 | 85 | 90 | 114 | 100 | 110 | 60.0 | 15.0 | 22.0 | 13.0 |
| 90 | 90 | 95 | 119 | 105 | 115 | 60.0 | 15.0 | 22.0 | 13.0 |
| 95 | 95 | 100 | 124 | 110 | 120 | 60.0 | 15.0 | 22.0 | 13.0 |
| 100 | 100 | 105 | 129 | 115 | 125 | 60.0 | 15.0 | 22.0 | 13.0 |
