HT Rubber Rotor Rotary Lobe Pump

● Environmental Protection: Municipal sewage, chemical wastewater, dewatering machine feeding, scum and floating matter recovery, flocculant, activated carbon, various sludges, etc.;

● Paper Industry: Pulp, suspension, polyacrylamide, calcium carbonate, starch paste, rosin, filler, sizing agent, water treatment chemicals, etc.;

● Petroleum Industry: Crude oil, heavy oil, thick oil, oil sludge, fuel oil, polymers, solid-liquid-gas mixtures, suspensions, latex, etc., can be used for oil unloading and warehouse sweeping operations;

● Chemical Industry: Shampoo, chemical raw materials, adhesives, semi-finished and finished products of acids and alkalis, etc.;

● Ships and Harbors: Suitable for conveying domestic sewage, silo bottom sludge, lubricating oil, crude oil, chemical raw materials, and recovery of oil spilled at sea, with small size, large flow, dry operation resistance and non-clogging;

● Vehicle-mounted Field: Strong vacuum suction, non-clogging (maximum allowable 90mm material), small size, widely used in vacuum sewage systems for EMUs, trains and underground shopping malls. At the same time, due to its positive and negative rotation characteristics, the on-board pump can complete unloading and cleaning simultaneously;

● Mining and Heavy Industry: Conveying ore slurry, mud, flocculant, emulsion explosives, kaolin, ceramics, titanium dioxide, etc.;

● Agriculture: Conveying liquid organic fertilizers, animal feed, as well as excreta, wastewater and liquid waste from breeding plants. In the biogas industry, it is the ideal transfer pump for biogas fermentation carriers;

● Daily Chemicals: AES, LAS, AOS, K12, glycerin, sorbitol, fatty acid, sulfate, facial cleanser, shampoo, detergent, shower gel, toothpaste, soap, etc.;

● Food Industry: Chocolate, condensed milk, yogurt, honey, syrup, cane sugar, tomato juice, concentrated fruit juice, jam, ice cream, milk, yeast slurry, meat pulp, condiments, soy protein, etc.;

● Pharmaceutical Industry: Various plasters, extracts, medicinal emulsions, pill pastes, syrups, health products, medicaments, etc.;

● Chemical Fiber Industry: Viscose paste, PVA, vinylon sizing, acrylic sizing, spandex sizing, polyester chips, various fibers and leather semi-finished products, etc.;

● Coatings Industry: Paints, coatings, inks, insulating paints, resins, additives, organic solvents, etc.;

● Municipal/Fire Protection: Mobile pump unit for flood drainage and rescue, smart fire pump truck, foam liquid pump, fire pump.

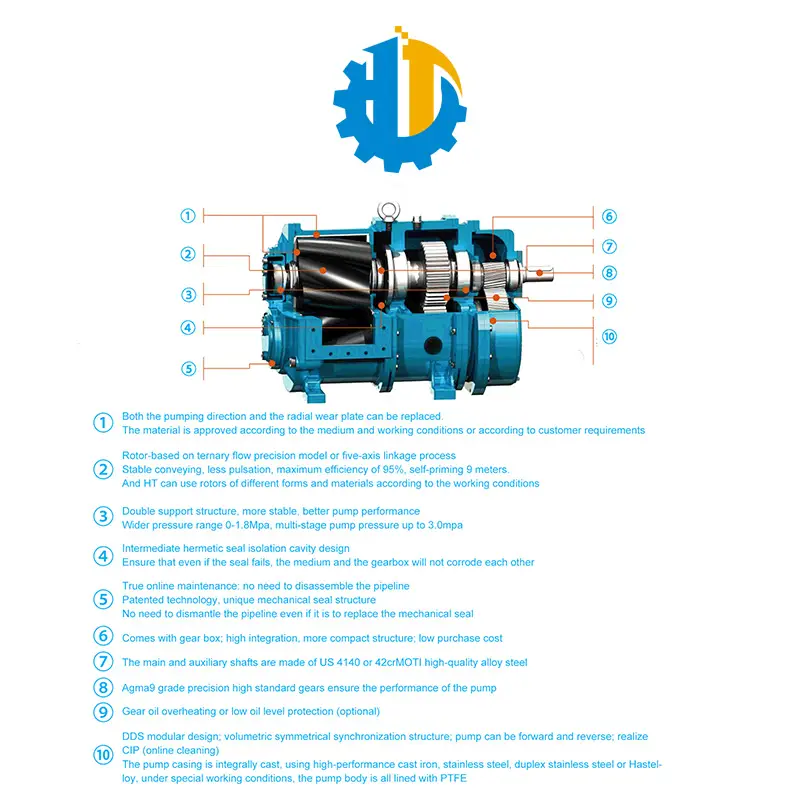

HONGTUO Rubber Rotor Rotary Lobe Pump takes "no pulsation, no shearing, wide adaptability and convenient maintenance" as its core advantages. It has a complete range of categories and wide coverage of performance parameters, and can adapt to complex working conditions such as high and low temperature, high viscosity and particle-containing. The material can be selected on demand, maintenance does not require pipe disassembly, it is suitable for conveying needs in multiple industries, and it has both stability and cost performance, providing efficient and reliable fluid conveying solutions for various industries.

HT Rubber Rotor Rotary Lobe Pump Model

● Genre: General grade, food and medicine grade, chemical grade, oil field type, special type, environmental protection municipal type, suitable for harsh needs of different industries;

● Flow range: 0.1-10000m³/h, meeting various conveying scenarios from small flow to extra-large flow;

● Self-priming ability: 0～8m, no need to prime the pump in advance, suitable for low-level medium conveying and improving operation efficiency;

● Temperature range: -40℃～240℃, stable operation under high and low temperature working conditions, suitable for extreme environments;

● Medium adaptability: Viscosity 0～2,000,000CP, particle passing capacity 0～80mm, not afraid of high-viscosity and large-particle-containing media;

● Pressure range: Single support 0～1.2Mpa, double support 0～1.8Mpa, multi-stage pump 0～3.0Mpa, adapting to different pressure needs on demand;

● Material configuration: Rotor material can be synthetic rubber, silicone rubber, polyurethane, engineering plastics, etc.; Bushing material can be high chromium alloy steel, stainless steel, special coating, titanium alloy, etc., with excellent corrosion resistance and wear resistance;

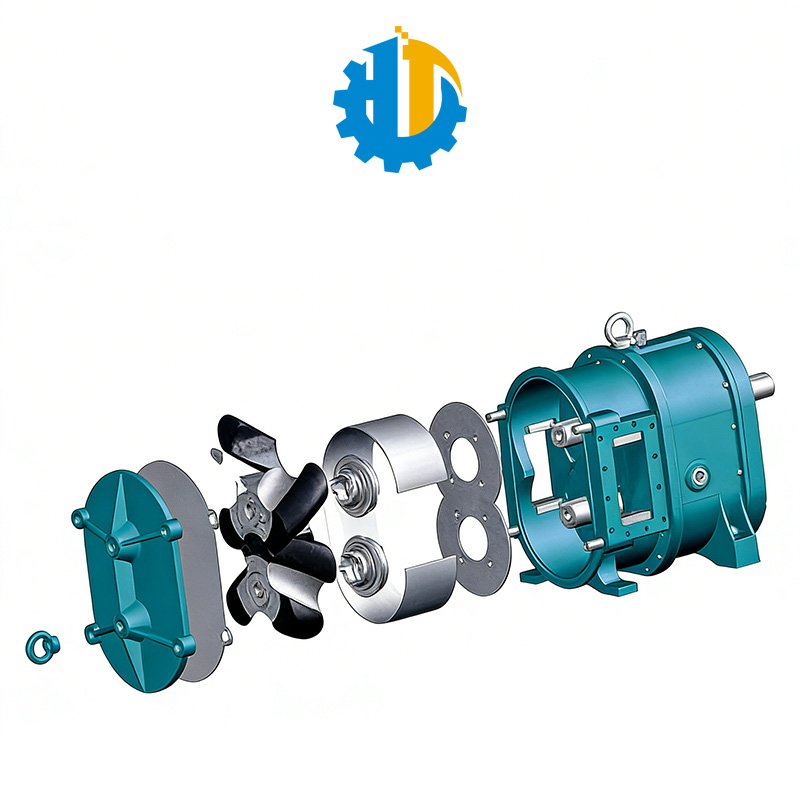

● Easy maintenance: No need to dismantle the pipeline, mechanical seal is installed behind, which can meet SIP (online maintenance) and CIP (online cleaning). All configurations of pumps with the same specifications are common, greatly reducing maintenance costs.
