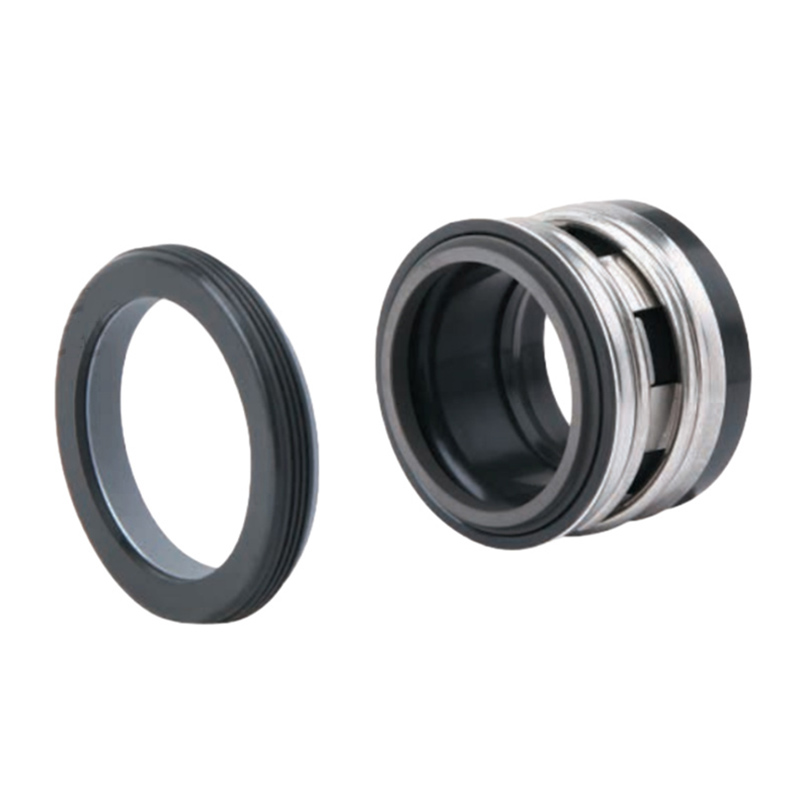

Operating Limits
Temperature: -40°C+150°C
Speed: ≤15m/s
Pressure: ≤16bar
Standard Size: 10-100mm
● Seal ring: Car, Sic, Ssic, TC
● Secondary seal: NBR, Viton, EPDM, Aflas.
● Spring and metal parts: 304, 316

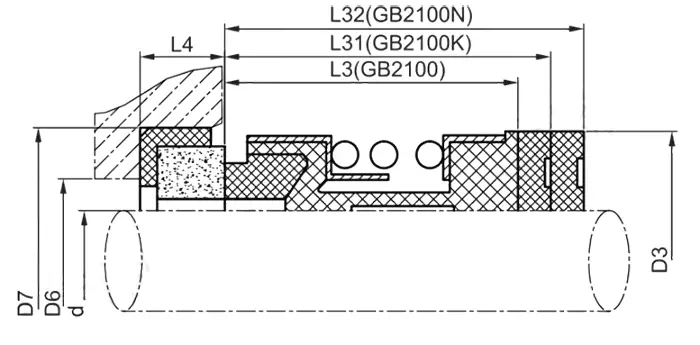

| Size | d | D3 | D6 | D7 | L3 | L31 | L32 | L4 |
| 10 | 10 | 20 | 15 | 21 | 15 | 27.5 | 35.0 | 5.0 |
| 12 | 12 | 22 | 17 | 23 | 15 | 26.5 | 34.0 | 6.0 |
| 14 | 14 | 24 | 19 | 25 | 15 | 29.0 | 34.0 | 6.0 |
| 15 | 15 | 25 | 20 | 26 | 15 | 29.0 | 34.0 | 6.0 |
| 16 | 16 | 26 | 23 | 27 | 15 | 29.0 | 34.0 | 6.0 |
| 18 | 18 | 32 | 25 | 33 | 20 | 31.5 | 39.0 | 6.0 |
| 20 | 20 | 34 | 27 | 35 | 20 | 31.5 | 39.0 | 6.0 |
| 22 | 22 | 36 | 29 | 37 | 20 | 31.5 | 39.0 | 6.0 |
| 24 | 24 | 38 | 31 | 39 | 20 | 34.0 | 44.0 | 6.0 |
| 25 | 25 | 39 | 32 | 40 | 20 | 34.0 | 44.0 | 6.0 |
| 28 | 28 | 42 | 35 | 43 | 26 | 36.5 | 44.0 | 6.0 |
| 30 | 30 | 44 | 37 | 45 | 26 | 35.5 | 43.0 | 7.0 |
| 32 | 32 | 46 | 40 | 48 | 26 | 35.5 | 48.0 | 7.0 |
| 33 | 33 | 47 | 40 | 48 | 26 | 35.5 | 48.0 | 7.0 |
| 35 | 35 | 49 | 42 | 50 | 26 | 34.5 | 47.0 | 8.0 |
| 38 | 38 | 54 | 47 | 56 | 30 | 37.0 | 47.0 | 8.0 |
| 40 | 40 | 56 | 49 | 58 | 30 | 37.0 | 47.0 | 8.0 |
| 43 | 43 | 59 | 52 | 61 | 30 | 37.0 | 52.0 | 8.0 |
| 45 | 45 | 61 | 54 | 63 | 30 | 37.0 | 52.0 | 8.0 |
| 48 | 48 | 64 | 57 | 66 | 30 | 35.0 | 50.0 | 10.0 |
| 50 | 50 | 66 | 60 | 70 | 30 | 37.5 | 50.0 | 10.0 |
| 53 | 53 | 69 | 63 | 73 | 30 | 37.5 | 60.0 | 10.0 |
| 55 | 55 | 71 | 65 | 75 | 30 | 37.5 | 60.0 | 10.0 |
| 58 | 58 | 78 | 68 | 78 | 33 | 42.5 | 60.0 | 10.0 |
| 60 | 60 | 80 | 70 | 80 | 33 | 40.5 | 58.0 | 12.0 |
| 63 | 63 | 83 | 73 | 83 | 33 | 40.5 | 58.0 | 12.0 |
| 65 | 65 | 85 | 75 | 85 | 33 | 40.5 | 68.0 | 12.0 |
| 68 | 68 | 88 | 79 | 90 | 33 | 40.5 | 68.0 | 12.0 |
| 70 | 70 | 90 | 81 | 92 | 33 | 48.0 | 68.0 | 12.0 |
| 75 | 75 | 99 | 86 | 97 | 40 | 48.0 | 68.0 | 12.0 |
| 80 | 80 | 104 | 92 | 105 | 40 | 47.5 | 77.5 | 12.5 |
| 85 | 85 | 109 | 97 | 110 | 40 | 47.5 | 77.5 | 12.5 |
| 90 | 90 | 114 | 102 | 115 | 40 | 52.5 | 77.5 | 12.5 |
| 95 | 95 | 119 | 117 | 120 | 40 | 52.5 | 77.5 | 12.5 |
| 100 | 100 | 124 | 122 | 125 | 40 | 52.5 | 77.5 | 12.5 |
