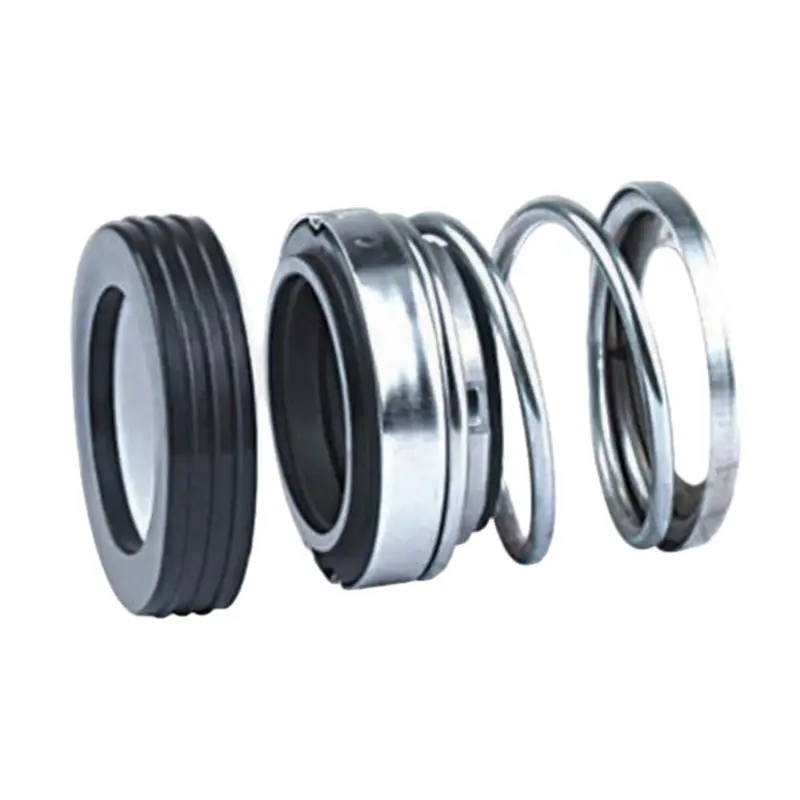

Operating Limits
Temperature: -20°C+100°C
Speed: ≤5m/s
Pressure: ≤7bar
Standard Size: 8-50mm or 0.375"-2"
● Seal ring: Car, Sic, Ssic, Ceramic, TC
● Secondary seal: NBR, Viton, EPDM, Aflas.
● Spring and metal parts: 304, 316

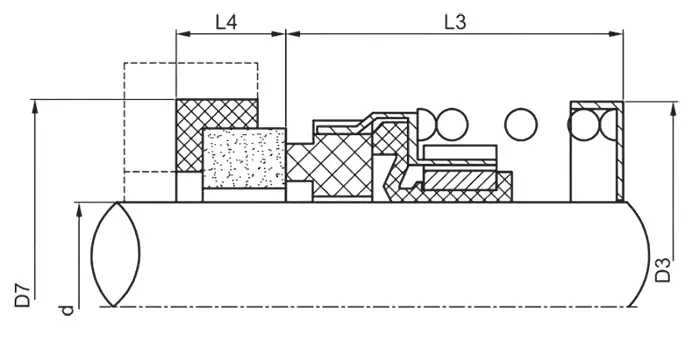

| Size/inch | d | D3 | D7 | L3 | L4 |
| 0.375 | 9.525 | 23.5 | 22.225 | 22.2 | 6.4 |
| 0.500 | 12.700 | 26.0 | 25.400 | 22.2 | 6.4 |
| 0.625 | 15.875 | 30.0 | 31.750 | 23.8 | 8.7 |
| 0.750 | 19.050 | 32.5 | 34.925 | 23.8 | 8.7 |
| 0.875 | 22.225 | 37.5 | 38.100 | 25.4 | 8.7 |
| 1.000 | 25.400 | 44.0 | 41.275 | 27.0 | 9.5 |
| 1.125 | 28.575 | 48.0 | 44.450 | 28.6 | 9.5 |
| 1.250 | 31.750 | 50.0 | 47.625 | 28.6 | 9.5 |
| 1.375 | 34.925 | 54.5 | 50.800 | 30.2 | 9.5 |
| 1.500 | 38.100 | 58.5 | 53.975 | 30.2 | 9.5 |
| 1.625 | 41.275 | 64.0 | 60.325 | 36.5 | 11.1 |
| 1.750 | 44.450 | 67.0 | 63.500 | 36.5 | 11.1 |
| 1.875 | 47.625 | 71.0 | 66.675 | 39.7 | 11.1 |
| 2.000 | 50.800 | 73.5 | 69.850 | 39.7 | 11.1 |
| d(mm) | D3 | D7 | L3 | L4 |
| 8 | 18.2 | 21 | 11 | 7 |
| 9 | 18.2 | 24 | 16 | 7 |
| 10 | 20.6 | 24 | 16 | 7 |
| 11 | 20.6 | 24 | 16 | 7 |
| 12 | 21.8 | 26 | 17 | 7 |
| 13 | 21.8 | 26 | 17 | 7 |
| 14 | 26.4 | 28 | 18 | 7 |
| 15 | 26.4 | 28 | 18 | 7 |
| 16 | 26.4 | 32 | 19 | 8 |
| 17 | 28.5 | 32 | 19 | 8 |
| 18 | 29.5 | 35 | 19 | 8 |
| 19 | 29.5 | 35 | 19 | 8 |
| 20 | 31.6 | 38 | 20 | 8 |
| 22 | 33.6 | 40 | 20 | 8 |
| 25 | 39.6 | 44 | 20 | 9 |
| 28 | 45 | 46 | 21 | 9 |
| 30 | 46.6 | 50 | 22 | 9 |
| 32 | 46.6 | 54 | 24 | 9 |
| 35 | 50.8 | 58 | 26 | 10 |
| 38 | 54.3 | 60 | 27 | 10 |
| 40 | 57.3 | 64 | 28 | 10 |
| 45 | 61.3 | 66 | 30 | 10 |
| 50 | 67.8 | 72 | 32 | 10 |
